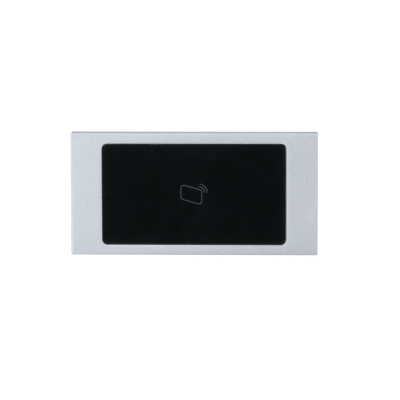

Model: VTO4202F-MR1
Features:
- Main Processor: Embedded Processor
- Card Type: ID card
- Modulation Type: AM
- Frequency Range: 125 kHz
- Max. Transmission Power: 66 dBuA/m @10 m
- Card Reading Distance: 1 cm–3 cm (0.39″–1.18″)
- Casing Material: Aluminium alloy
- Power Output: 5 VDC (provides power for other modules)
- Appearance Colour: Silver
- Power Supply: 5 VDC (provided by other modules)
- Installation: Flush Mount; Surface Mount
- Product Dimensions: 100 mm × 49.90 mm × 28.50 mm (3.94″ × 1.96″ × 1.12″)
- Protection: IK07; IP65(silicone sealant is needed for installation)
- Operating Temperature: –20 °C to +60 °C (–22 °F to +140 °F)
- Operating Humidity: 10%–90% (RH)
- Power Consumption: ≤2 W
- Gross Weight: 0.16 kg (0.35 lb)
