Overview

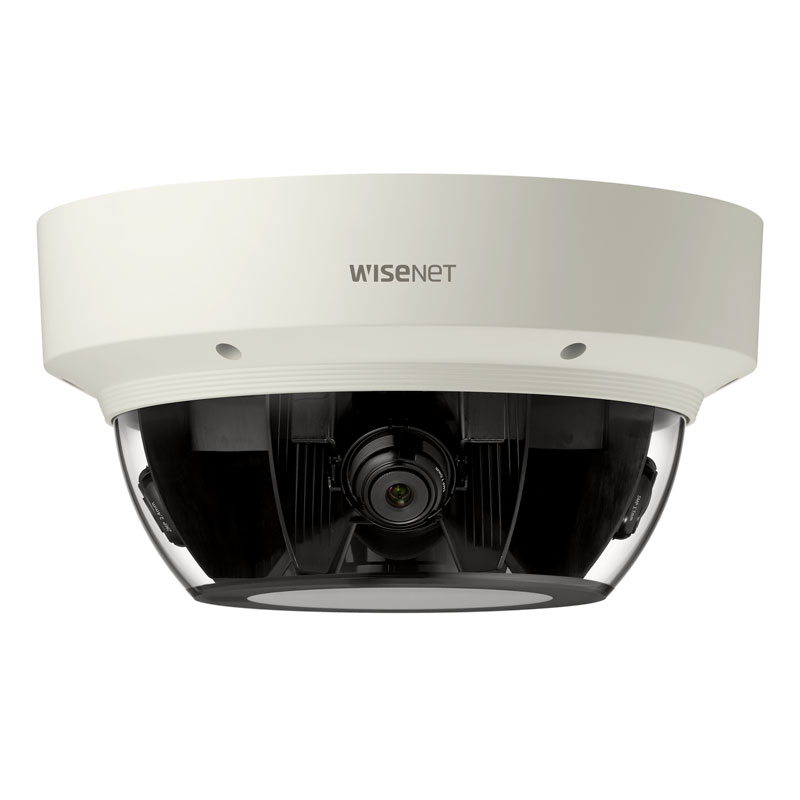

When using the Hanwha HAN-PNM-9002VQ you can monitor multiple directions simultaneously without blind spots, making it ideal for wide areas such as shopping mall entrances, lobbies and airports. The four sensors in this multi-directional camera move independently of one another. In addition, one of the sensors can easily be removed and attached in the center of the camera, allowing for flexible set-up. Through it’s IP66 and IK10 rating, the HAN-PNM-9000VQ is suitable for many environments such as warehouses, shopping mall entrances, train stations, parking lots and much more. This camera is suitable to monitor even the smallest details in a wide area, making it an efficient security solution for a variety of applications.
Features
- Exchangeable 4ea at 2MP / 5MP lens modules
- 8MP to 20MP resolution
- (dependant on the combination of lens modules)
- Max. 60fps at 2MP (H.265 / H.264)
- WDR 150dB (2MP), 120dB (5MP)
- 2.4mm, 2.8mm, 3.6mm, 6mm fixed lens (2MP module)
- 3.7mm, 4.6mm, 7mm fixed lens (5MP module)
- H.265, H.264, MJPEG codec, Multi streaming support
- Video analytics, WiseStream II
Specification
- RJ-45 10/100/1000 base-T ethernet
- PoE+ (IEEE802.3at)
- IP66, IK10
- Power consumption: 25.5W
- Operating temperature: -40 to 55 degrees celsius
- Colour and material: white, aluminium
- Dimensions: 253 x 130mm
- Weight: 3kg
Download
Datasheet
User Manual
Installation Documents
HAN-PNM-9002VQ Installation Guide
