Description

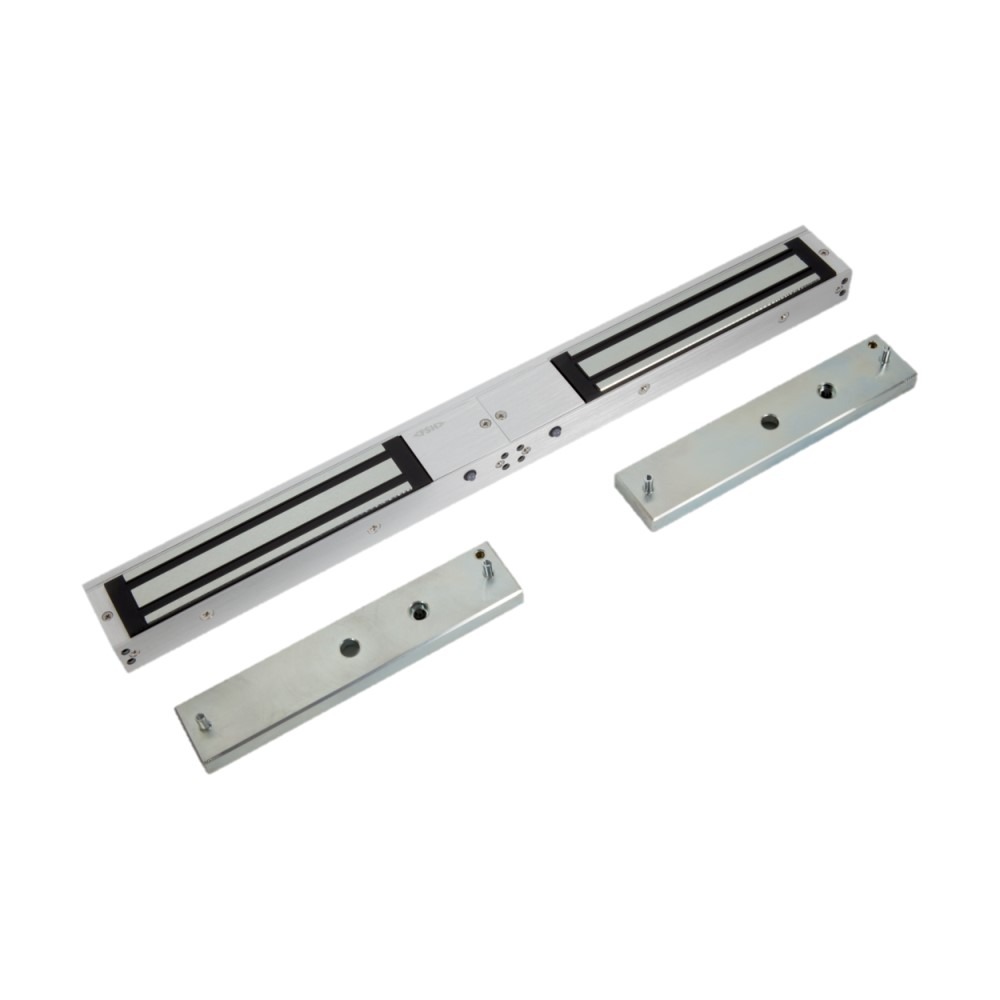

Model: FSH-FEM4300DM
The FSH-FEM4300 is part of the FSH FEM4300 electromagnetic lock series and has a holding strength up to 280kg. Coming in different configurations such as single and double, monitored, and non-monitored and colours, including silver and black, make this range suitable for almost any installation application. The series also includes a trigger input and a red/green LED indicator to represent locked and unlocked status, as well as an output that follows the door position status (on monitored models only). Accessories such as adjustable L & Z brackets for different mounting positions and armature plates for glass doors, further extend the installation capabilities.
Features:
- Field selectable voltage input, 12 or 24 V
- Double door secure
- Door and lock status monitoring sensor
- Built-in varistor (MOV) surge protection
- Red/Green multi-colour LED for locked/unlocked status
- No residual magnetism
- Fire Rated up to 2-hours
- Anodised aluminium finish
Specs:
- Holding Strength: 280kg (per magnetic lock)
- Max current draw at 12V: 500mA
- Max current draw at 24V: 250mA
- Dimensions: 477mm (L) x 48mm (W) x 25mm (D)
