PRODUCT DESCRIPTION

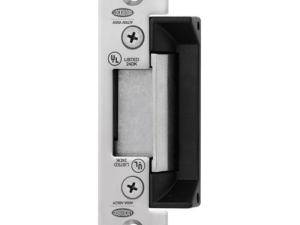

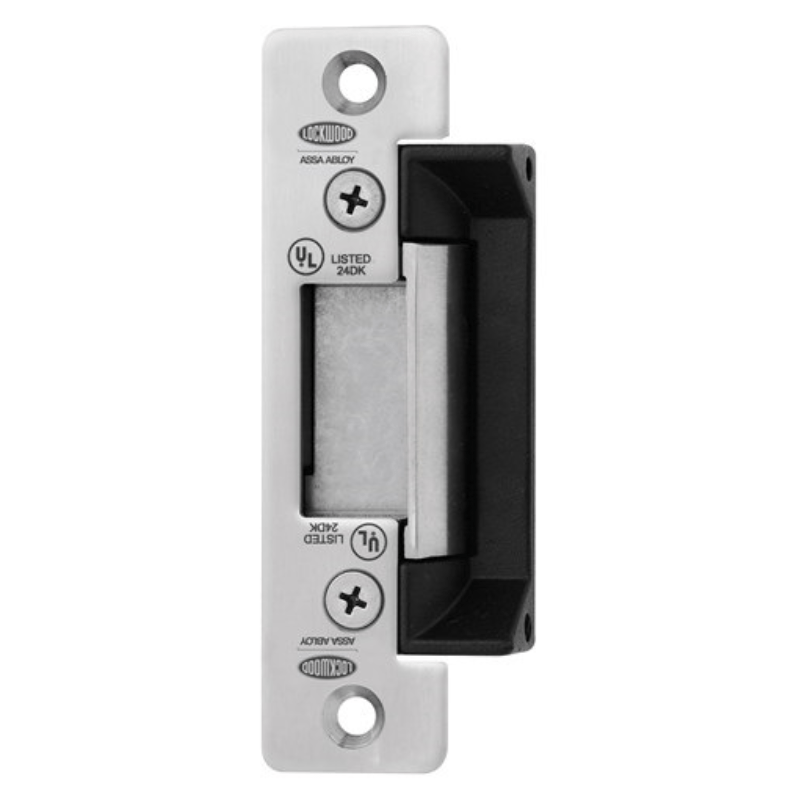

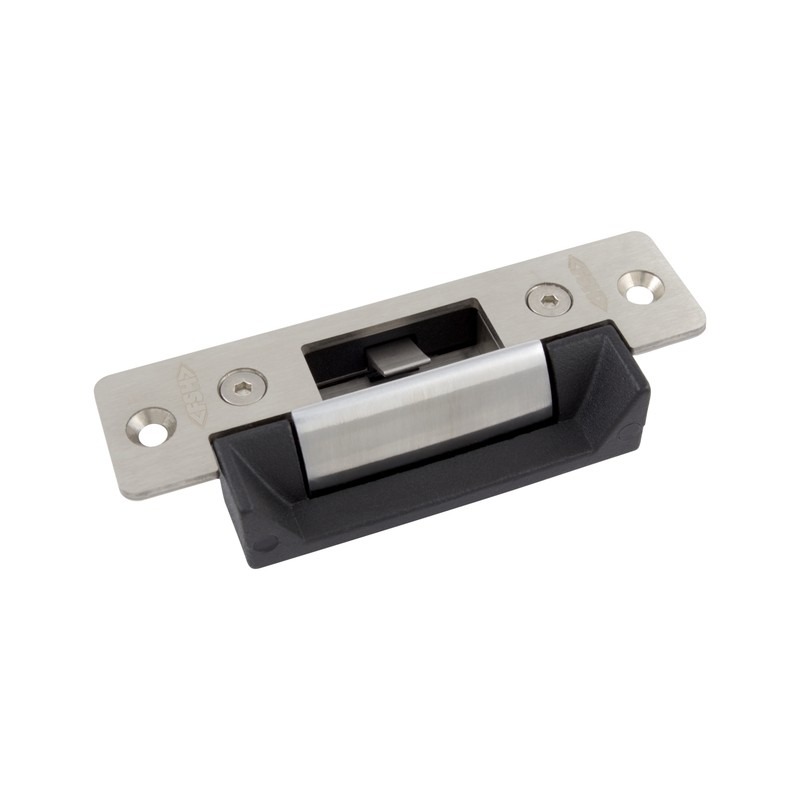

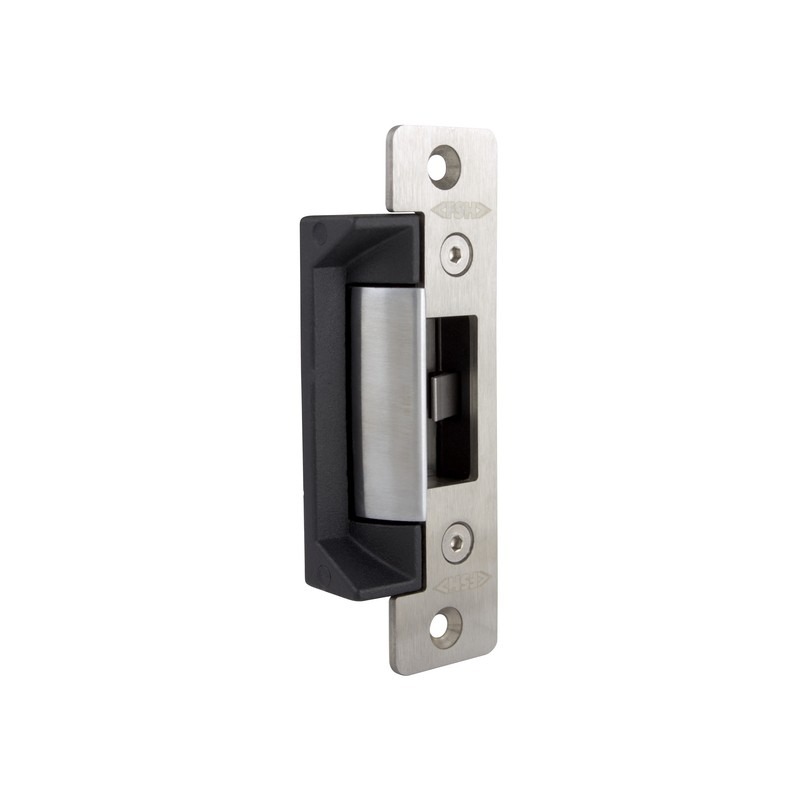

The FES10 Series electric strikes are designed for light commercial and residential applications. With a small ANSI footprint, the strikes accept either 12 or 24VDC and have been tested to a 4-hour fire rated in accordance with AS 1530.4:2005 (contact Allegion for more details).
The strikes are easily Power To Lock (PTL) / Power To Open (PTO) field changeable by simply changing over the barbell mechanism. The device is pre-drilled to cater for extension lips, comes with a 5 year warranty and has a holding strength of up to 1000kg.
The FES10M version has Door Status Sensor monitoring. The FES10 is weather resistant to IP56 standard.
Technical Specification
PART No.
|
FES10M | FES10 |
FUNCTION |
Mortise mount, Power To Lock/Power To Release
field changeable. Input Voltage: 12/24VDC |
Mortise mount, Power To Lock/Power To Release
field changeable. Input Voltage: 12/24VDC |
HOLDING STRENGTH
|
Up to 1000kg | Up to 1000kg |
VOLTAGE/CURRENT
|
Dual Voltage 12VDC/200mA 24VDC/100mA | Dual Voltage 12VDC/200mA 24VDC/100mA |
APPROVALS
|
2 hour fire rated to A.S. and B.S. standards | 2 hour fire rated to A.S. and B.S. standards |
MONITORING
|
Door Latch monitoring | Non monitored |

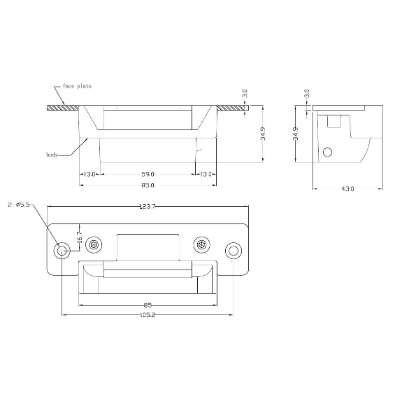

SIZE
|
L= 125 x W= 42 x D= 35mm | L= 125 x W= 42 x D= 35mm |
IP RATING
|
N/A | Weather resistant iP56 |
Downloads:
2022-Commercial-Product-Catalogue-FSH-FES10-Series-Electric-Strikes
PDFS0003_FSHFES10_InstallInstructions_Apr2022-FES10-only
PDFS0006_FSHFES10M_InstallInstructions_Apr2022-FES10M-Only
